Home Assistant Notifications (with Sync in Dashboard and Mobile)

I’ve been struggling with Home Assistant notifications. From some searching, it seems other people are also struggling.

A lot of videos online cover basic “How to send a notification to your phone”, but I wanted a whole lot more life-cycle than that. I want to clear them. And I don’t want to have to write a thousand action conditions, either.

I sat down and spent far more time than I’d like to admit to tackling the problem. This might not fit every use-case for every person, but this was exactly the functionality I needed.

Table of Contents

• Changes
• Goals
• Make Notifications
  • Notifications from Automations
• Push/Sync Notifications with Android Phones
  • Forward Notifications to Mobile Phones
  • Dismiss notifications on Mobile Phones
• Dashboards
  • Notifications in dashboard
    • Without HACS
    • With HACS
    • Home Feed Card
  • My Dashboard (Vertical)
  • My Dashboard (Horizontal)
• Neat Tricks
• Caveats and Possible Improvements
• Super Helpful Tips
• Downloads
• Thanks

Changes

• 2023-01-31: Added a Table of Contents, and added a few layers of nested headers to help organize.

Goals

My basic list of goals were as follows:

• Notifications that can be displayed in Home Assistant dashboard.

  I’m installing wall-mounted tablets. Notifications must be visible and apparent when walking past.

• Notifications that are also relayed to Mobile (Home Assistant app on Android).

  I may not be walking past a tablet (or even home) when a notification occurs.

• Notifications can be dismissed via automation

  My theory of notifications are that they are states that need to be addressed, rather than notices to swipe away. Rather than having to dismiss the “Door Unlocked” or “Washer Finished” notification, the corrective action (Locking the door, opening the washer) should clear the notification. Both on the dashboard, and the phone.

  I was solving this with a dashboard cards that lit up when triggered. However, they were always there, even if not valid – i.e., I always have an icon for a washing machine, even if it’s not helpful most of the time.

• Not needing to update every automation to adjust mobile notification rules.

  If I add/change/remove/upgrade my phone, I don’t want to review rules. Ditto for adding my wife to notifications, etc.

• Do all of the above with NO HACS ADDONS, or at minimum, as few as possible

  I don’t have anything against HACS (and I use it). But I also don’t like building a house of cards and weird one-off special purpose cards. Core HA-included functionality should cope with HA upgrades, without issue.

  Spoiler alert: No HACS addons are needed for most of this, including the mobile notifications. However, I am using one HACS addon for the Dashboard. It technically isn’t required, but it significantly improves the experience. I’ll detail the dashboard options below.

And as always, there are numerous ways to do anything in Home Assistant. This isn’t “correct” or “incorrect” – merely “solves the intended scenario”.

Note, there are downloads available at the end of this post.

Make Notifications

Notifications from Automations

• Automations create notifications

  Using the persistent_notification.create service to create notifications allows you to create notifications that are handled by Home Assistant itself. Setting a notification_id is very, very important. If you call notify.persistent_notification instead, you don’t get to set that.

  For example, via automation, when my Washing Machine power drops to 0.0W this Action is performed:

    - service: persistent_notification.create
      data:
        title: Washing Machine
        message: Load Complete!
        notification_id: Washing Machine


• Automations dismiss notifications

  Use persistent_notification.dismiss to dismiss notifications when the original status has been resolved. As I said earlier, I want notifications to be dismissed by resolving the condition that set it. This requires notification_id, so we can clear specific notifications.

  When I open my washing machine door, for example, this action is performed:

    - service: persistent_notification.dismiss
      data:
        notification_id: Washing Machine


You can set up those notifications however you want: one automation that creates/dismisses based on an if/else, multiple automations with complex conditions. You may create a dozen automations creating/dismissing 100 notifications. That’s up to you. The key thing is that you’re creating/destroying them with the persistent_notifications service.

Push/Sync Notifications with Android Phones

Forward Notifications to Mobile Phones

Here we can create a new automation to forward notifications to the Home Assistant app, installed on my device.

We can trigger an automation whenever the persistent_notification.create service is used. From there, we can create a mobile notification, and re-use the message, title, and notification_id from the original notification:

Below is the entire automation used to relay all notifications to my phone:

alias: Notifications - Send To Mobile
description: ""
trigger:
  - platform: event
    event_type: call_service
    event_data:
      domain: persistent_notification
      service: create
condition: []
action:
  - service: notify.mobile_app_pixel_6a
    data:
      message: "{{trigger.event.data.service_data.message}}"
      title: "{{trigger.event.data.service_data.title}}"
      data:
        tag: "{{trigger.event.data.service_data.notification_id}}"
        channel: "{{trigger.event.data.service_data.notification_id}}"
mode: single

You’ll need to add each mobile device you want to send notifications to (eg. Me, wife, etc). However, you don’t have to also do that on the dozens/etc automations for the Washer, Front Door lock, etc.

These don’t need to be mobile notifications, of course. This could relay to any notification channel (XMPP, etc).

Dismiss notifications on Mobile Phones

The Home Assistant Companion App Notification Docs mention that you can actually dismiss notifications as well, by sending a specially-crafted message (clear_notification) along with, you guessed it, the notification_id.

One last automation to dismiss the notification from our phones whenever the persistent_notification is dismissed:

alias: Notifications - Dismiss to Mobile
description: ""
trigger:
  - platform: event
    event_type: call_service
    event_data:
      domain: persistent_notification
      service: dismiss
condition: []
action:
  - service: notify.mobile_app_pixel_6a
    data:
      message: clear_notification
      data:
        tag: "{{trigger.event.data.service_data.notification_id}}"
mode: single

Again, you’ll have to duplicate the action for additional devices.

Now, while the notifications themselves could be sent to any notification provider, these clear_notification messages are specific to the companion app on Android – The docs mention this doesn’t work on iOS.

Dashboards

Notifications in Dashboard

The built-in persistent notifications are not very noticeable in Home Assistant (little bell icon in the side bar gets a coloured dot on it). This was insufficient for me.

However, we can put notifications right in the dashboards with two options:

Without HACS

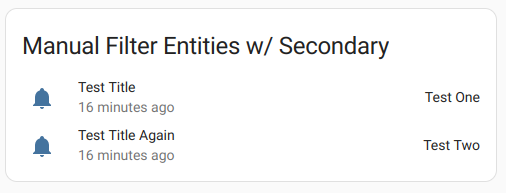

Without HACS, we can use an entity-filter card. This has a significant downside in that you need to pre-enumerate every notification_id you use. If you want this widget on multiple dashboards, adding a new notification is a significant chore.

I don’t suggest actually using this, except as an example that it can be done

  - type: entity-filter
    entities:
      - persistent_notification.abc
        secondary_info: last-changed
        type: attribute
        attribute: message
      - persistent_notification.xyz
        secondary_info: last-changed
        type: attribute
        attribute: message
      - persistent_notification.zzz
        secondary_info: last-changed
        type: attribute
        attribute: message
    state_filter:
      - notifying
    card:
      type: entities
      title: Manual Filter Entities w/ Secondary

You must use the entity-filter card with filter based for ’notifying’ state. This will exclude notifications that don’t currently exist. If we used a plain entities card, you’ll get errors for every notification not currently active.

With HACS

The much better option is to use Auto-Entities via HACS. It provides some significant benefits:

• filter includes, not just excludes. Additionally, we can use a wildcard. This makes this a generic card now. You can drop it on many dashboards without having to touch it again in the future.

• It has a show_empty value, which makes the whole widget disappear if empty.

• It has a empty value, which lets you select an alternate card to display if empty (vs show_empty, above)

• It lets you use any container-type card (grid, vertical-stack, etc), combined with any card for the entities. This gives you much more style flexibility.

You can see why I compromised on my “No HACS” goal for this point.

And this, much simpler yaml:

  - type: custom:auto-entities
    card:
      type: vertical-stack
      title: Notifications in Vertical Stack of Cards
    card_param: cards
    filter:
      include:
        - entity_id: persistent_notification.*
          options:
            type: entity
            attribute: message
    sort:
      method: last_triggered

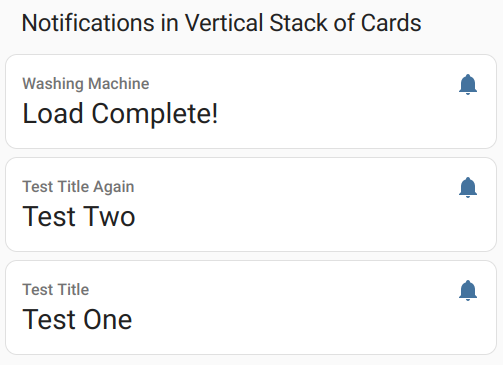

Gives us this much, much nicer list. Also note my Washing Machine notification is here. It wasn’t in the previous example because I hadn’t hard-coded it.

Home Feed Card

There’s also a Home Feed Card in HACS specifically to display persistent_notifications. However, it’s style didn’t match my dashboard. I may have grown to like it, but I’m very happy with the above solution.

My Dashboard (Vertical)

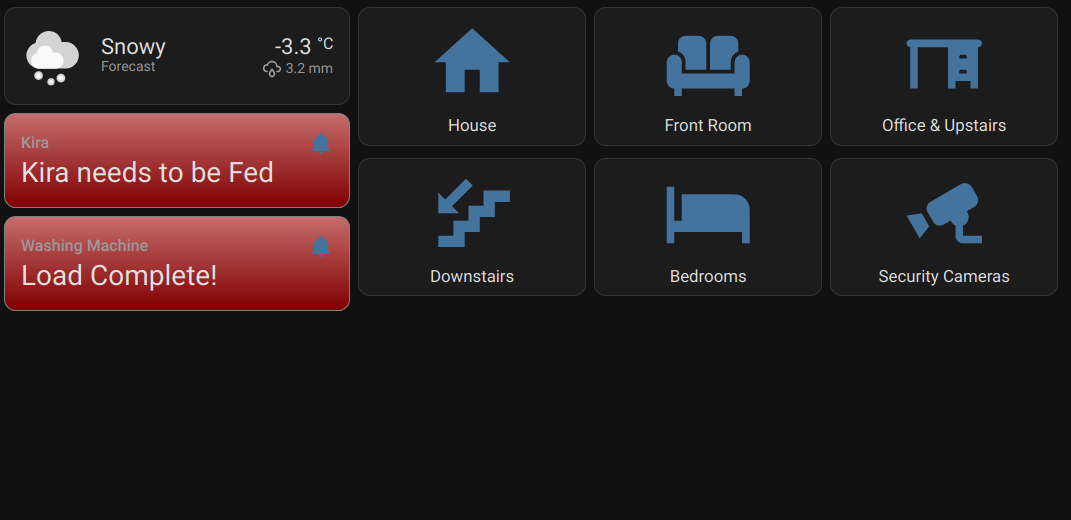

Here’s a screenshot of my (still in progress) main dashboard, with notifications displayed in a vertical -stack of cards on the left. This gives me very visible notifications when present:

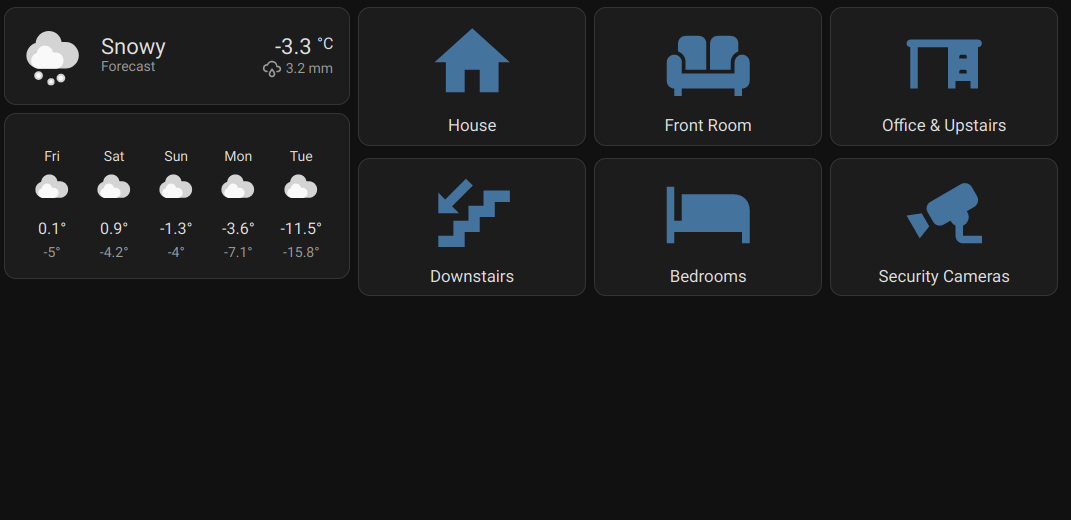

When there are no notifications, that space is used instead for a weather forecast.

I am using two frontend addons from HACS on this dashboard, however.

• layout-card to gridify my dashboard but with grid layout and placement control.

• Canary, allowing some basic css styles (canary_style)

  Canary is not necessarily the best option for styles, but it is the one I was experimenting with.

My Dashboard (Horizontal)

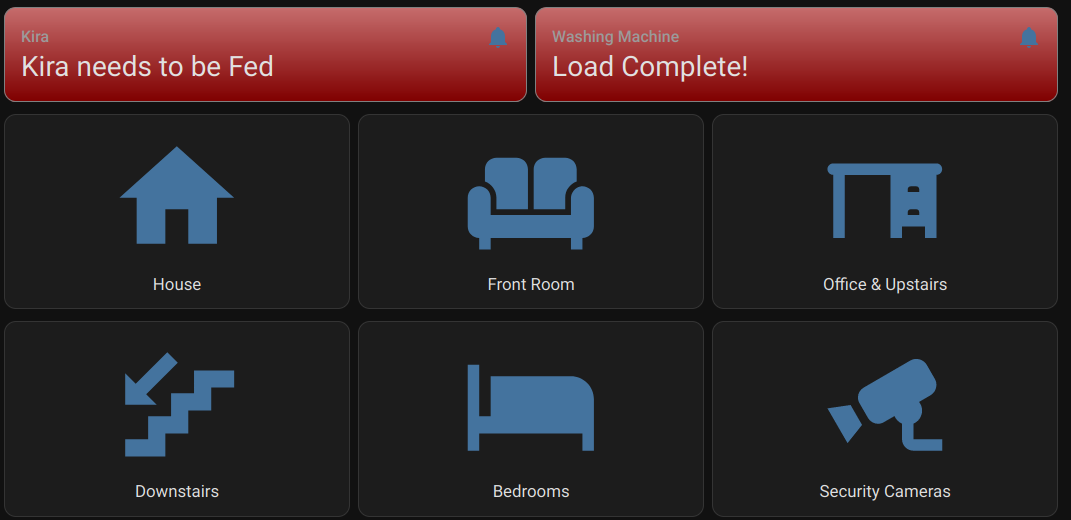

An alternative dashboard I’m considering is top-notifications that disappear entirely when clear:

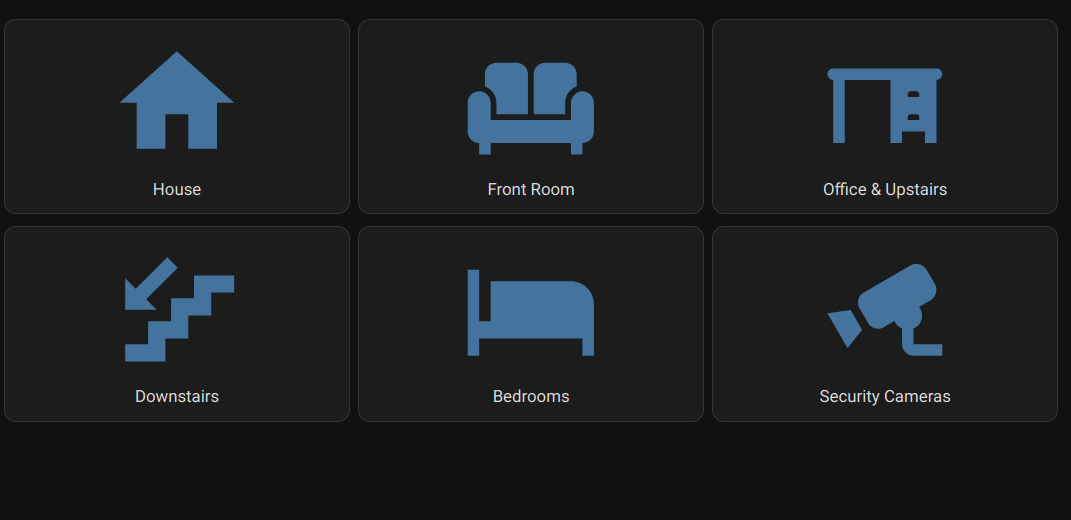

When there are no notifications, that space is reclaimed by the rest of the dashboard.

Neat Tricks

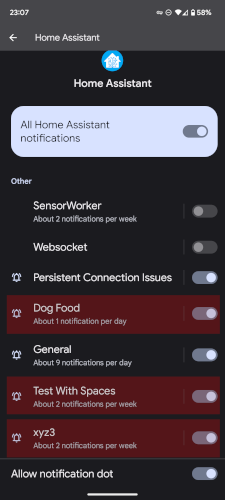

• Since we set a channel on the Mobile Notification, we can actually long-press on the notification and adjust notification settings (on/off, silent, pop-up on screen) on your phone itself. These are configured per-channel.

  This also means your notification_id values should be user-readable, since we re-used these for Channel IDs. Don’t use xyz3 like my test data, because these channels never go away once seen, and your notification settings will look like this:



  This may also be Android-only. Check the docs.

• Since we set a tag on the Mobile Notification, re-sending a notification replaces the old one with the same tag, rather than giving you a second notification. I’m re-using notification_id here as well.

Caveats and Possible Improvements

• It sucks to have to list every mobile device in the two forwarding automations. It would be nice to have some logic that can do a wildcard match and loop. Since I have only two phones to configure, but many notifications, this was good enough.

• You could add key words to message/title/notification_id (ex: “Urgent:” or “- Mobile”), then add a condition to only forward notifications to phones if that key word is there.

  I may do this in the future. There’s some notifications that will be irrelevant unless you’re actually home.

• If you manually dismiss a notification in Home Assistant, the notification is dismissed on mobile.

  However, if you “Dismiss All” from the Home Assistant sidebar, only one notification is actually dismissed on the phone. This may be a fixable problem, but that’s not a problem I’m concerned about since the side bar will probably be hidden on my wall tablets.

Super Helpful Tips

There are a bunch of docs and tools I used to accomplish this:

• Home Assistant’s Developer Tools > Events Tab

  Helped clue me in that I could trap the service call when creating/dismissing persistent notifications

• Logbook

  Many log items are just notices that something updated with no further data. However, if you click on an ‘Automation’ in Logbook, theres a whole lot of detail on what the automation did/didn’t do, as well as the data available to it at each stage.

  Once I had the “Send to Mobile” notification triggering correctly (with test content only), I had to figure out which notification actually triggered the automation. I clicked on the Automation in the log, and inspected the first step (Executed).

  There’s a tab in the bottom pane called “Changed Variables”. This identifies all of the data available for you that was set when the automation was triggered. This is how I was able to identify how to reference the message/title/notification_id data that was passed to the service call.

• Notification documentation for the Companion App (Explained tags/channels, and a ton of other features)

  https://companion.home-assistant.io/docs/notifications/notifications-basic/

Downloads

Here’s some examples you can download and shove into your HA to test.

• dashboard-notifications.yaml

  The dashboards require some HACS addons as-is, but no actual customization is needed for them to display notifications. (Obviously, the buttons won’t work for you)

• automation-send-to-mobile.yaml

  You’ll need to adjust the service line to reference your phone’s notification service. And/or add additional actions for additional phones.

• automation-discard-to-mobile.yaml

  You’ll need to adjust the service line to reference your phone’s notification service. And/or add additional actions for additional phones.

Thanks

I hope this will be helpful to others.
